Description
Heating Elements: 2
Color :Black
Power Source: Gas Powered
Fuel Type : Propane, Natural Gas
Special Feature :Flame-Out Protection
Heater Surface Material: Tempered Glass
Material : Tempered Glass
Product Dimensions: 20°D × 11.5"W × 3.9"H
Burner type :Sealed
About this item

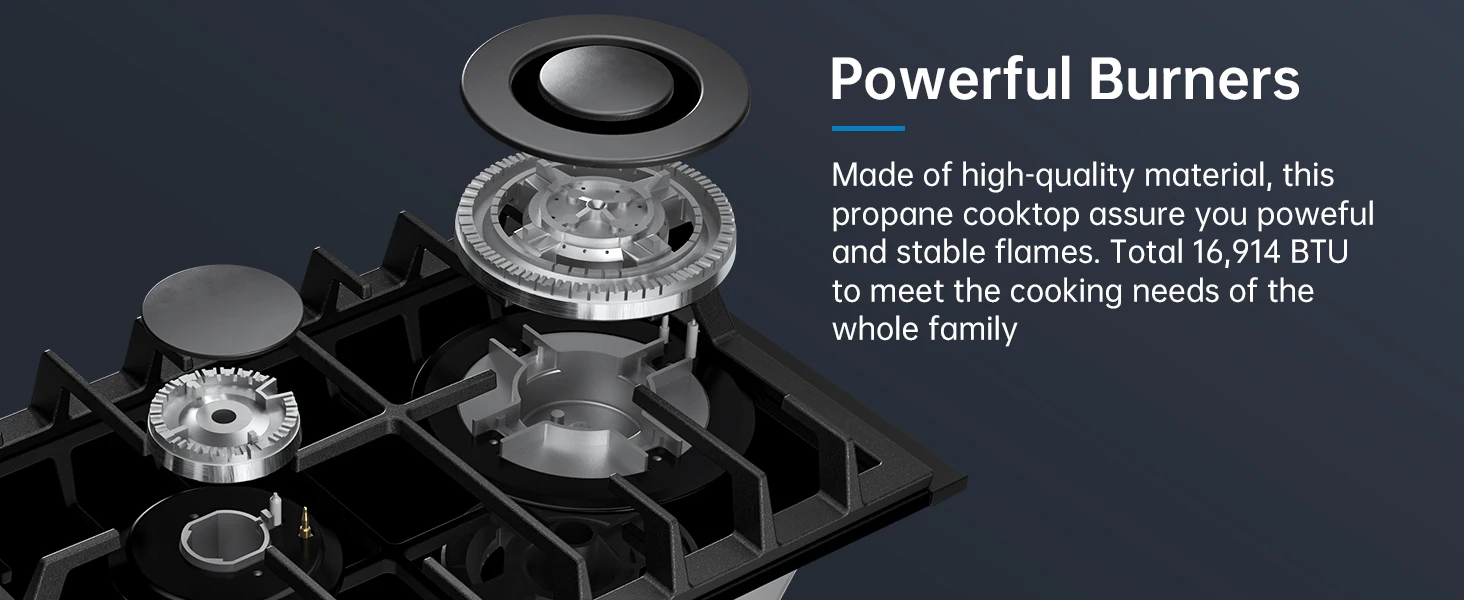

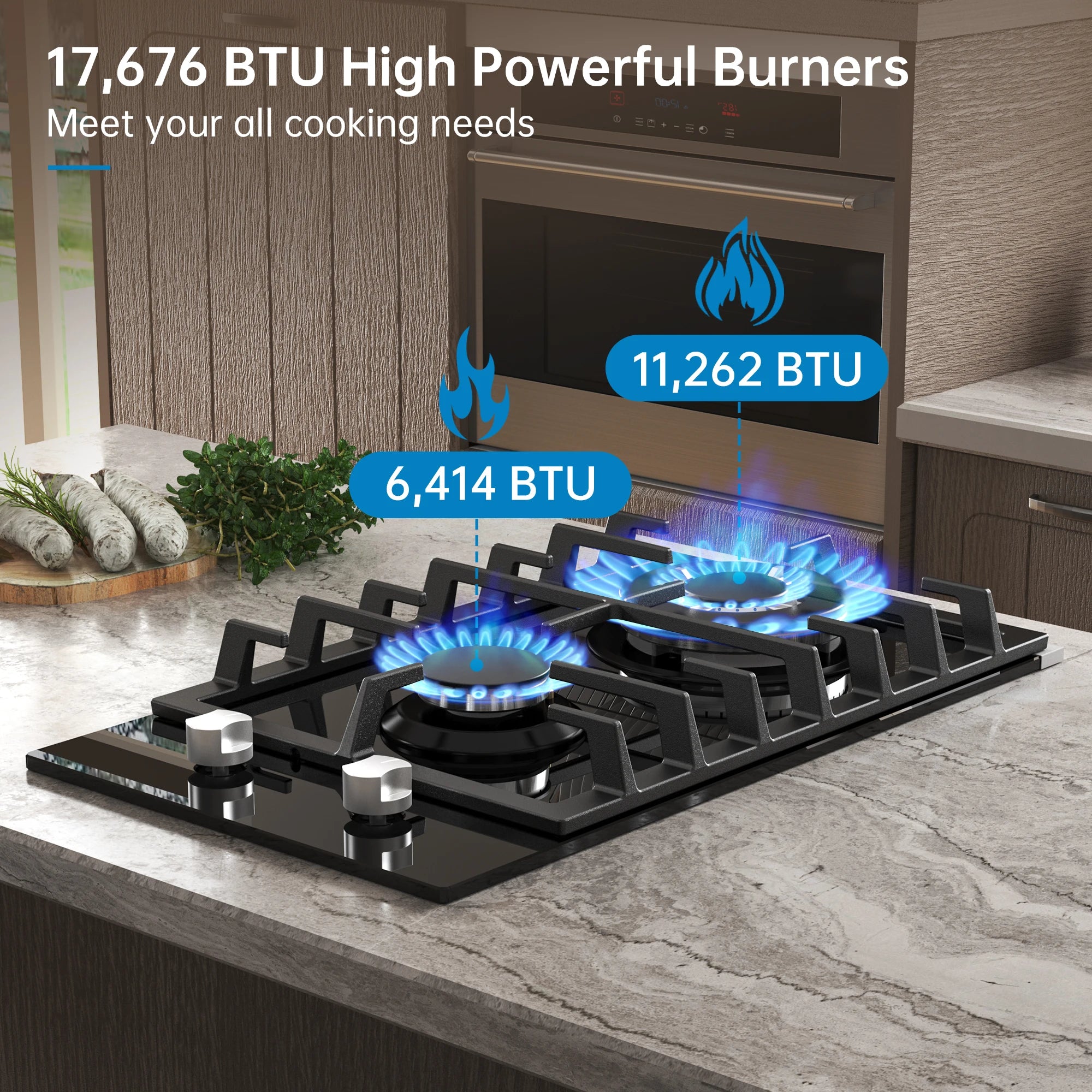

[Highly Efficient Burners]

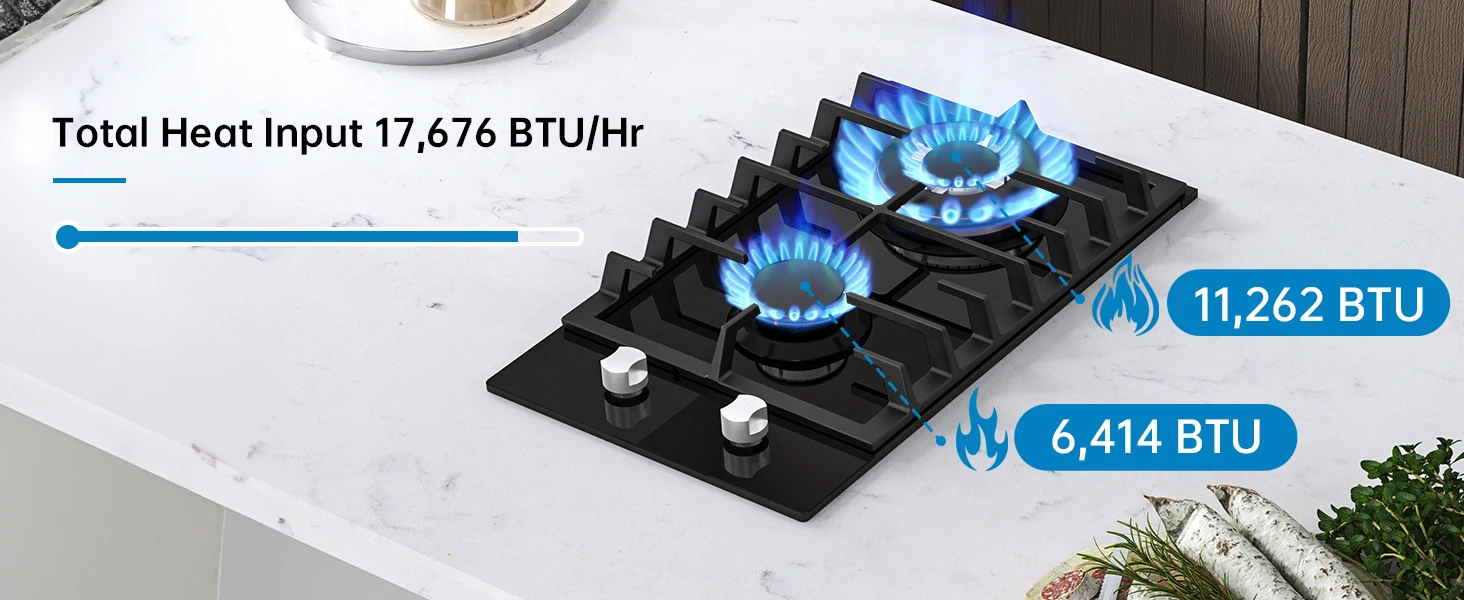

This drop in 12 inch gas cooktop features 2 highly efficient sealed burners. 11,262 BTU rapid burner for boiling, searing, pan frying. And 6,414 BTU simmer burners provide consistent and accurate low heat for delicate cuisines.
[Easy Maintenance]

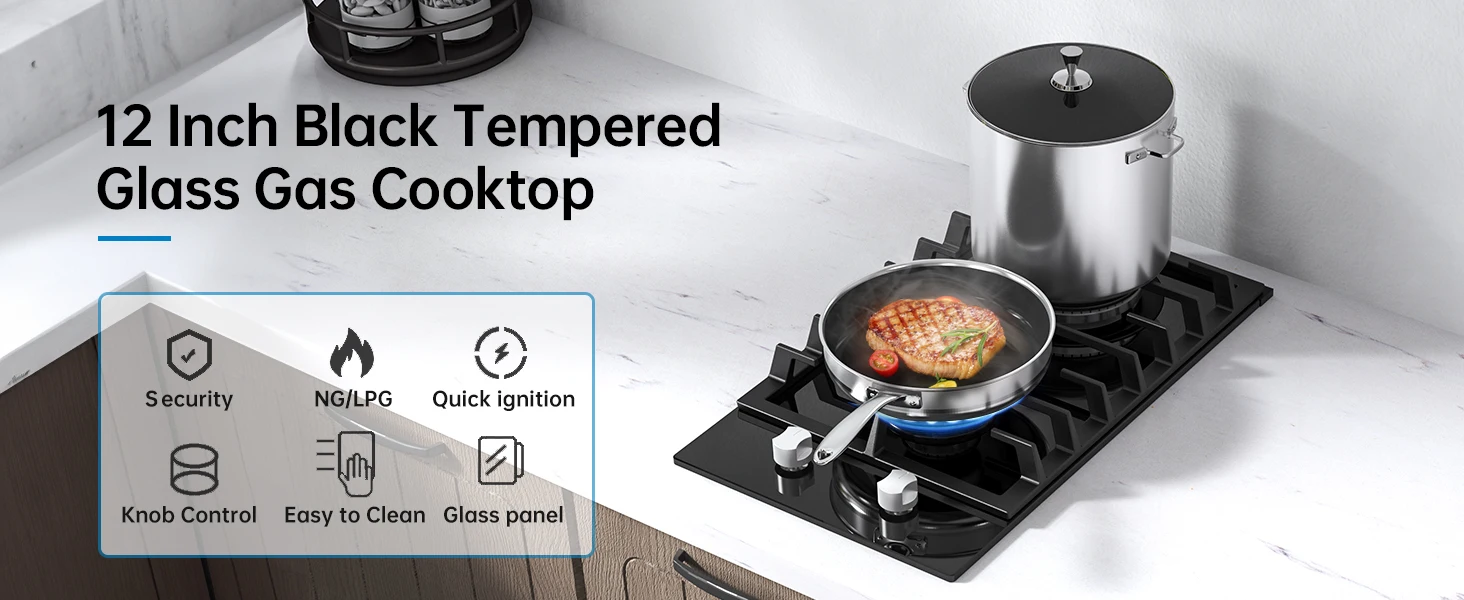

Built with black tempered glass surface, this 12" propane cooktop not only exudes elegance but also resists stain, heat and discoloration. 2 sealed burners prevent food from dropping into them. You can simply remove the grates and wipe it clean with water or detergent.
[2 Convertible Gas Supply]

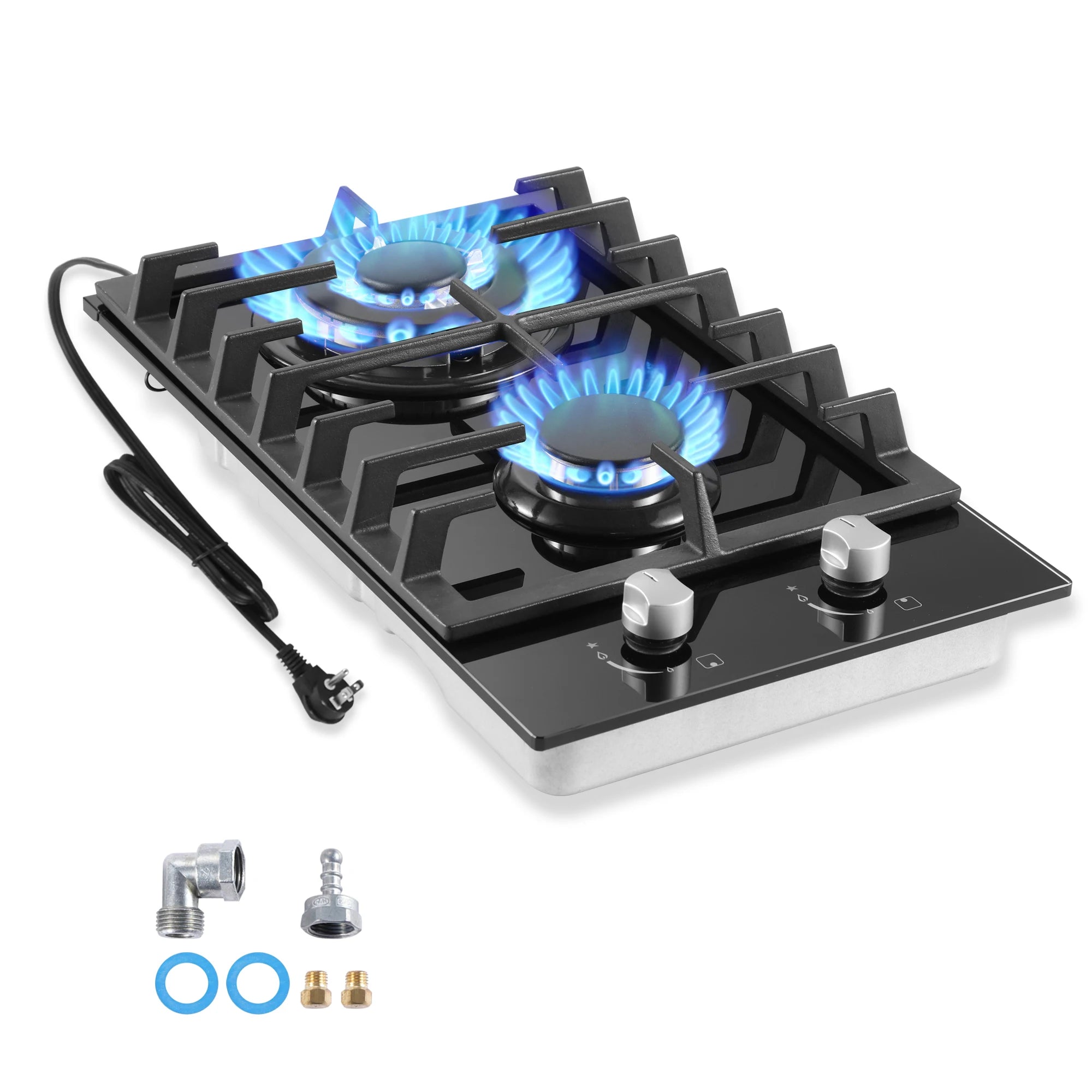

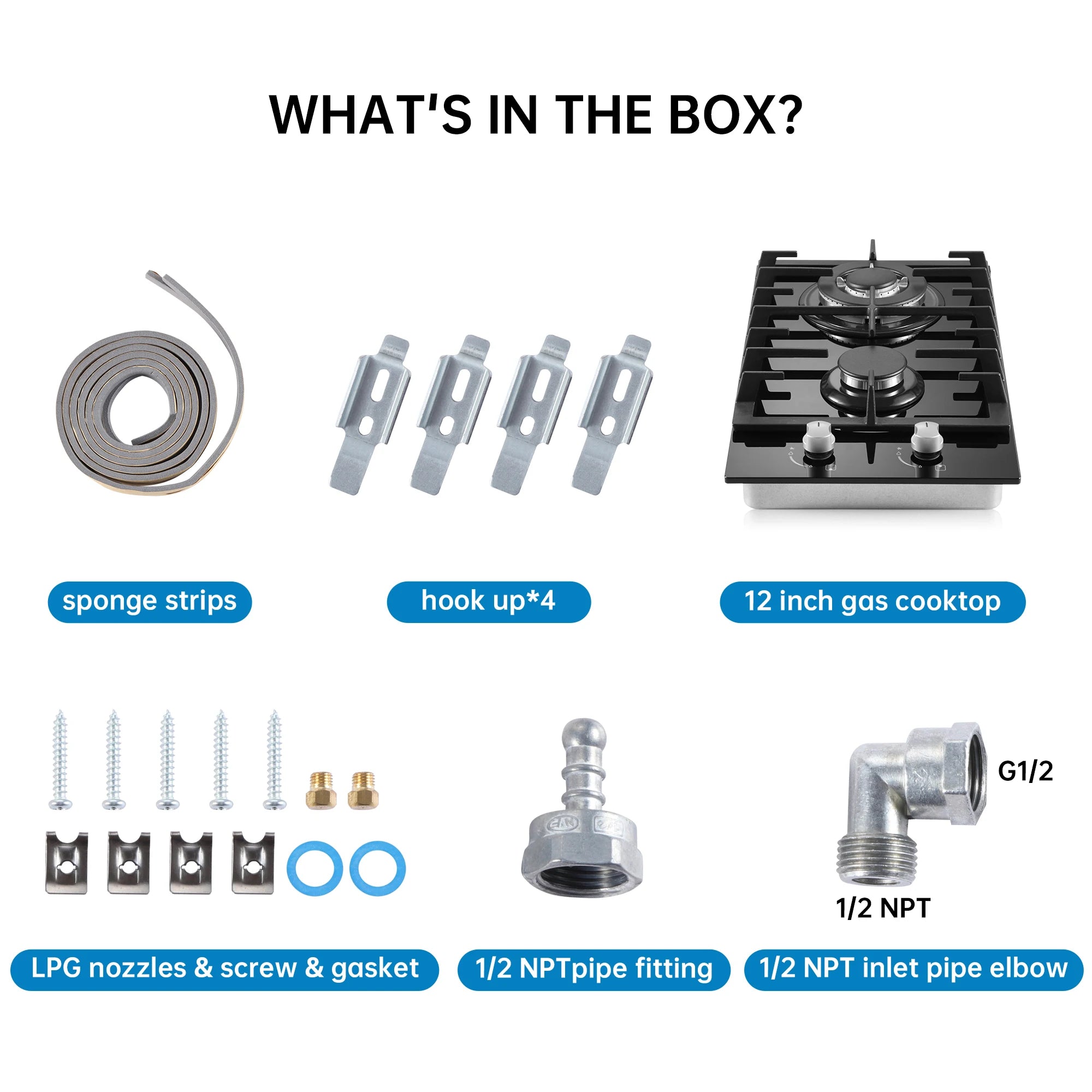

This dual fuel gas hob is designed for natural gas and liquid propane. The initial setting is for natural
gas, come with both natural gas & propane nozzles. Please note that: Natural gas pressure regulator and gas pipe are NOT included. Capable for multi-purpose such as RVs, light cooking family, small kitchen, mobile home.

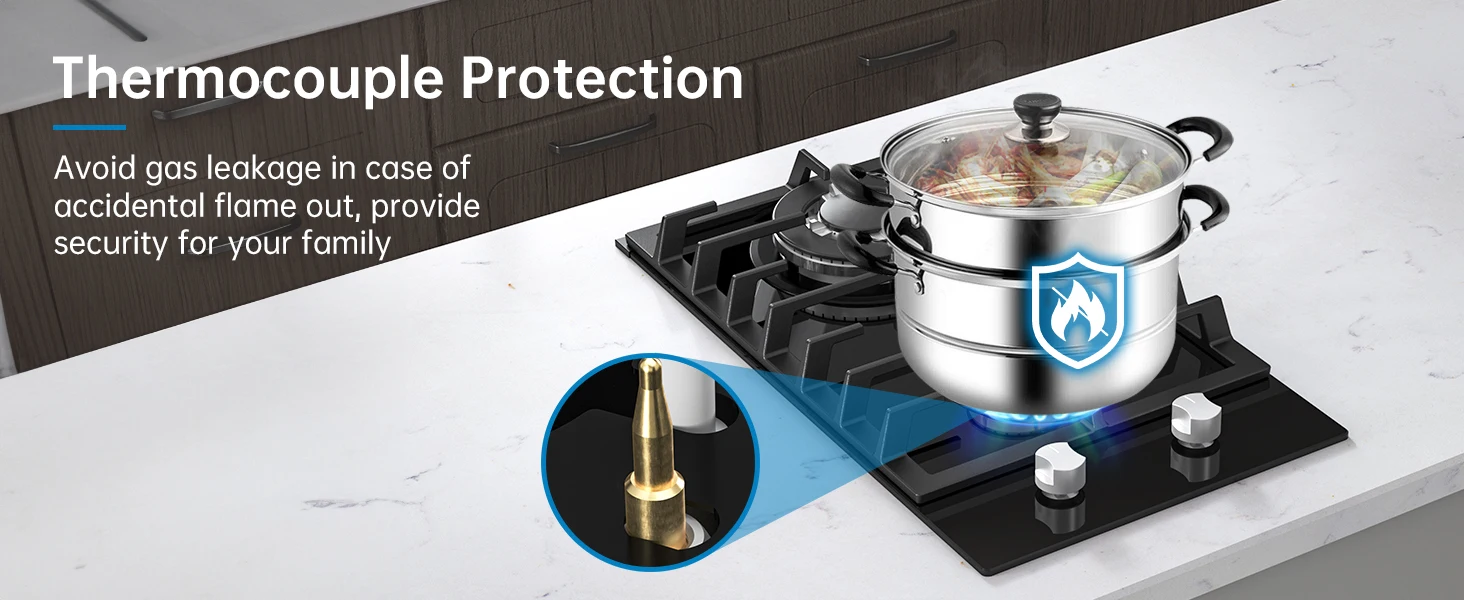

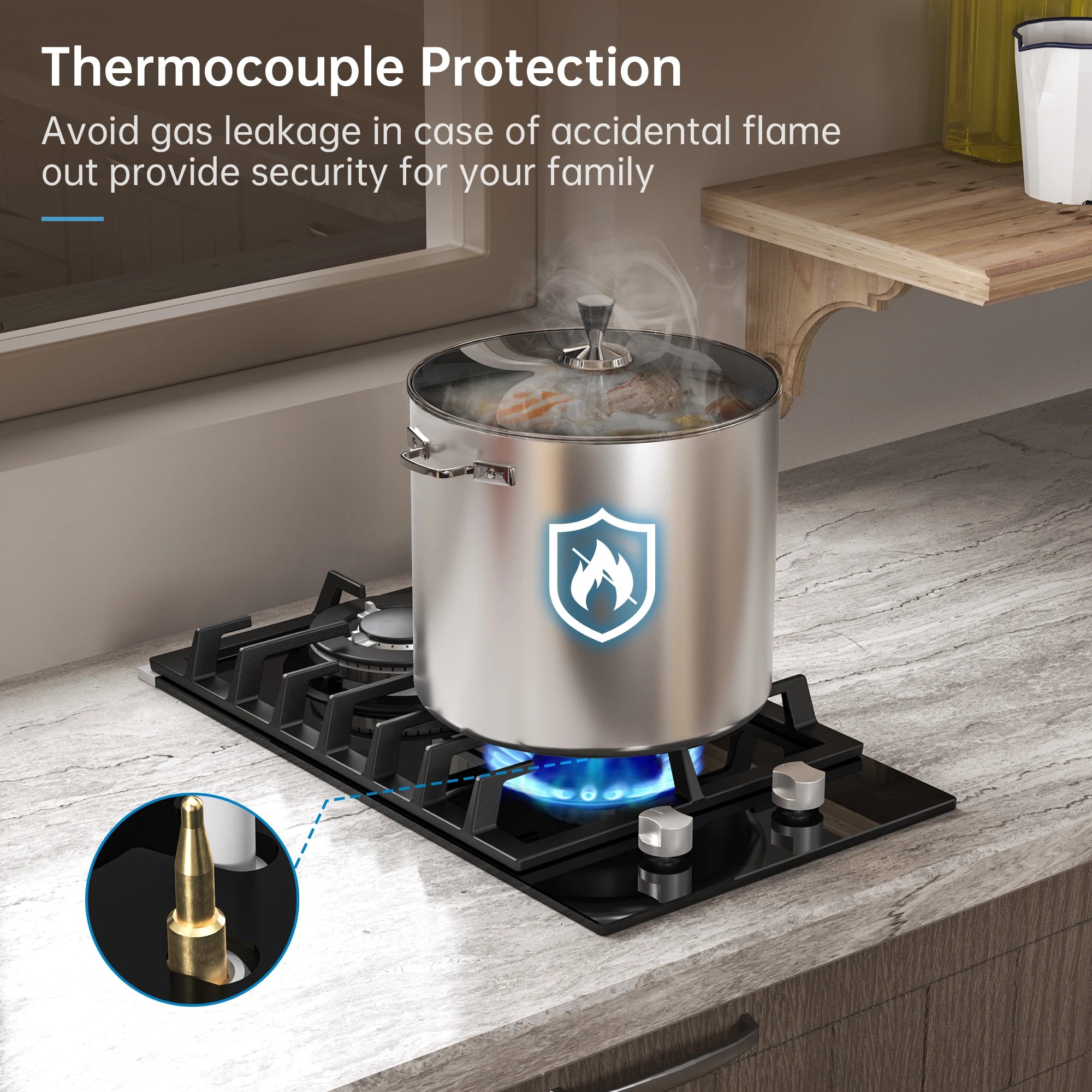

[Thermocouple Protection]

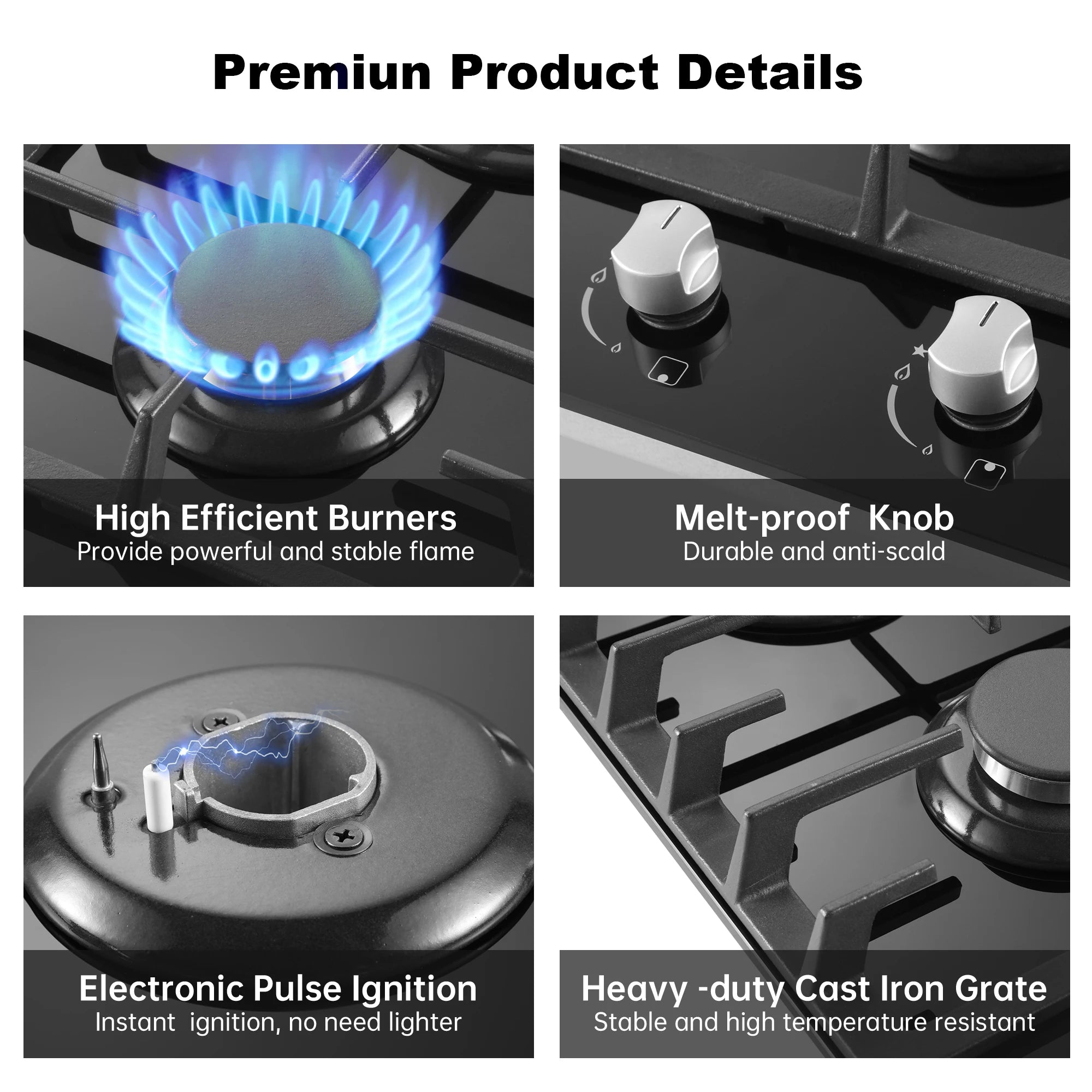

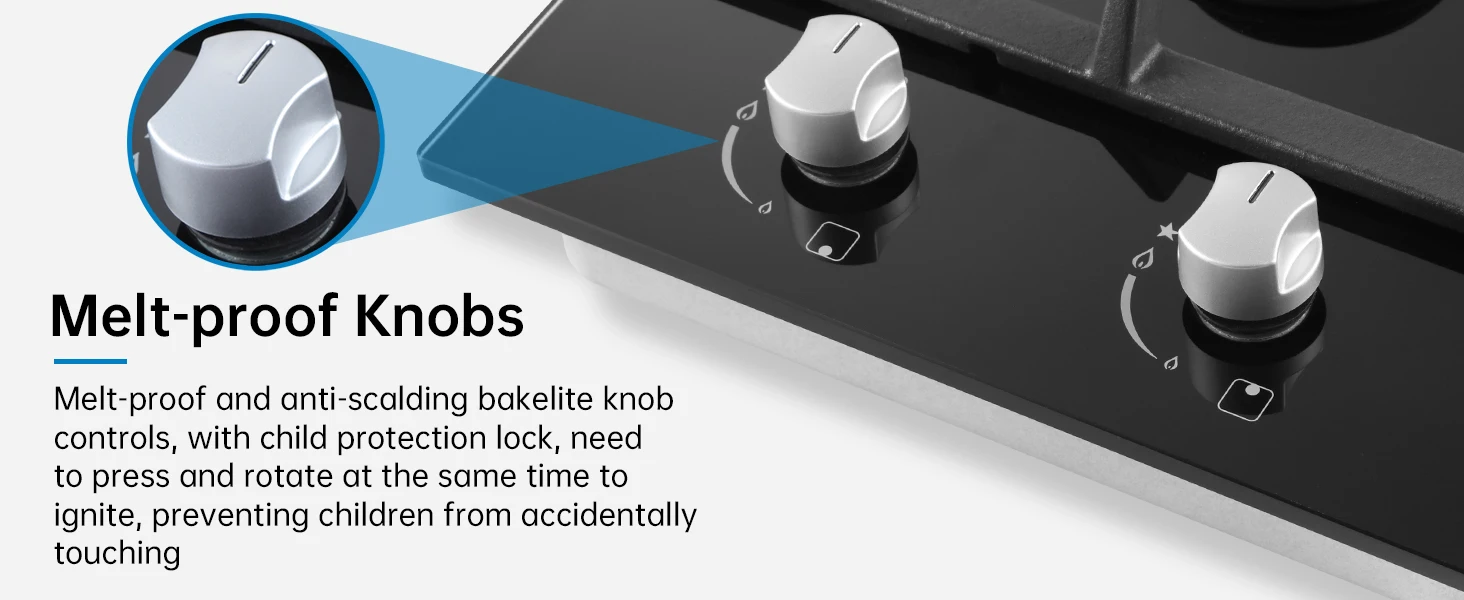

Experience hassle-free cooking with automatic ignition via the rotating control, allowing for flexible
and precise gas adjustment with every use. Equipped with a thermocouple flame-out failure device system(FFD), our two burner propane stove will shut off the gas automatically if a flame is not detected to ensure your safety in an emergency.
[Bulit-in Gas Stove Top]

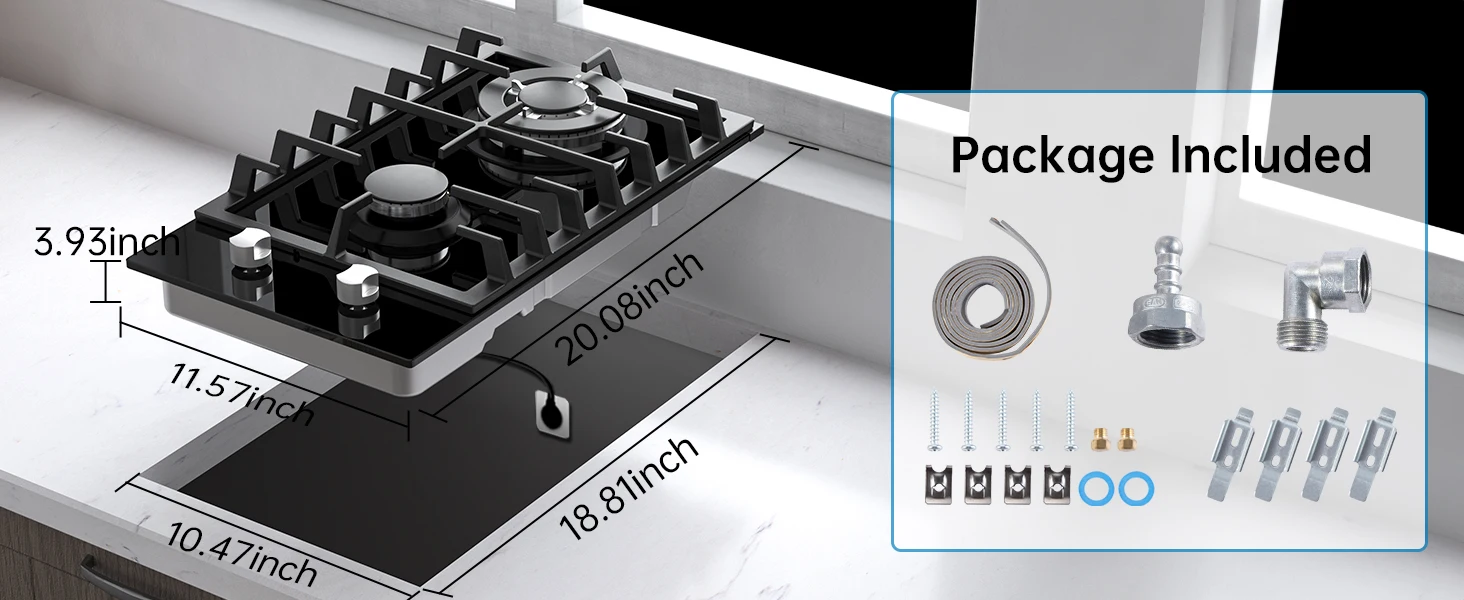

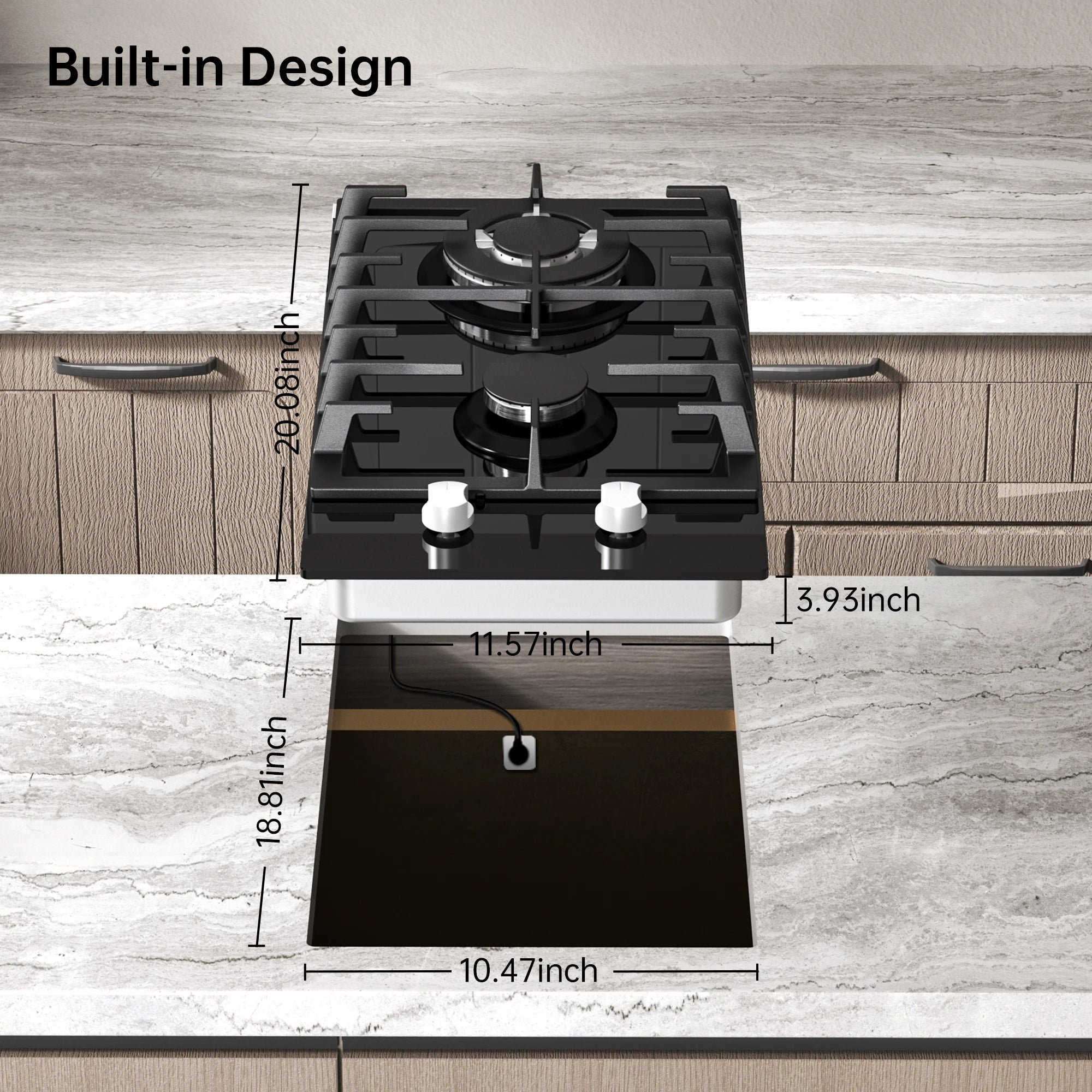

Crafted with heavy-duty cast iron grates, our built-in propane gas stove is stable and will not deform. Its compact design makes it perfect for small counters or apartment, RV, indoor use, without compromising on performance. With dimensions of stovetop size:11.57" W x 20.08"D x 3.93"H and a cut-out size of 10.47" W x 18.81'D. NOTE: Please install the burner cap according to the instructions, otherwise it will cause the glass to break.
Is there a problem?
It may occur that the cooktop does not function or does not function properly. Before calling for assistance, let's see what can be done. First of all, check to see that there are no interruptions in the gas and electrical supplies, and, in
particular, that the gas valves for the mains are open.
The burner does not light or the flame is not uniform around the burner.
Check to make sure that:
The gas holes on the burner are not clogged; All of the movable parts that make up the burner are mounted correctly; There are no draughts around
the cooking surface.
The flame does not stay lighted on the model with the safety device.
Check to make sure that:
You press the knob all the way in; You keep the knob pressed in long enough to activate the safety device; The gas holes are not clogged in the area corresponding to the safety device.
The burner does not remain on when set to "Low".
Check to make sure that:
The gas holes are not clogged; There are no draughts near tire cooking surface; Tile minimum has been adjusted correctly (see the section entitled, "Minimum Regulation'").
The cookware is not stable.
Check to make sure that:
The bottom of the cookware is perfectly flat; The cookware is centered correctly on the burner or electric hot plate; The support grids have not been inverted.
If, despite all of these checks, the cooktop does not function properly and problem persists, call the nearest.
